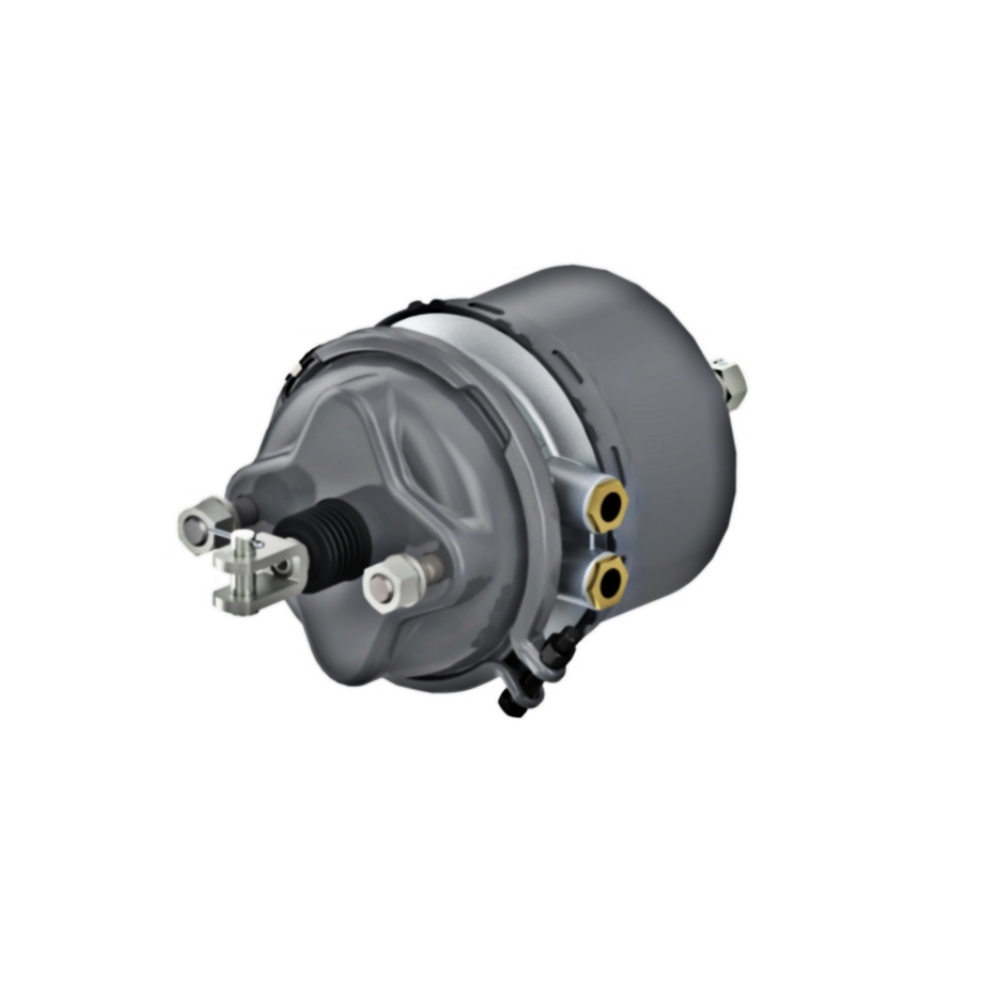

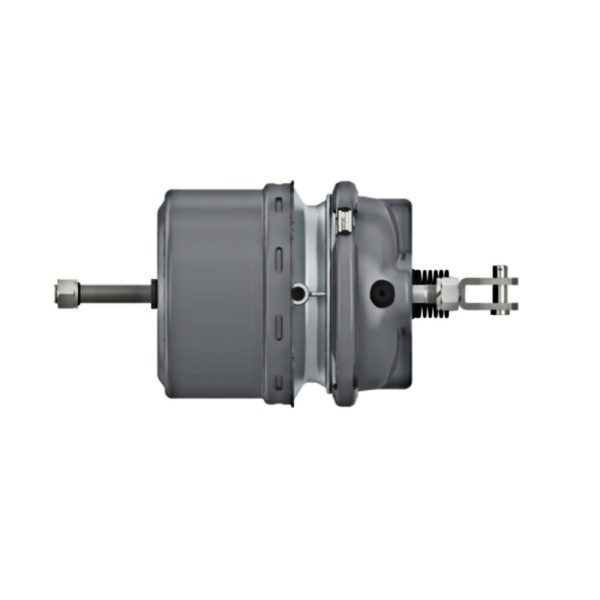

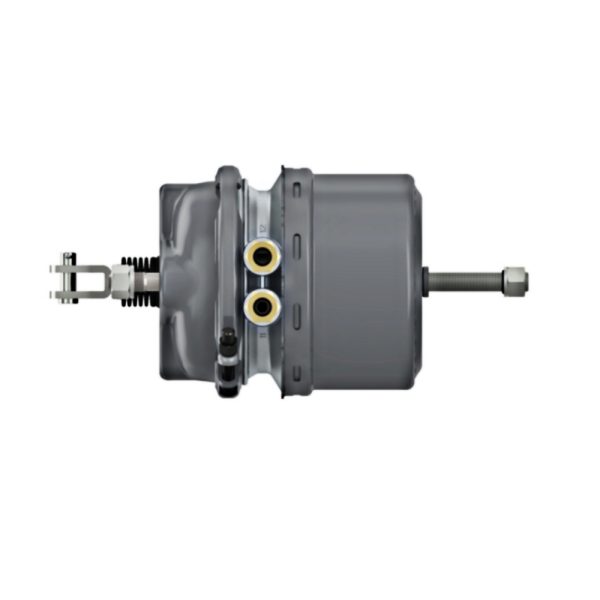

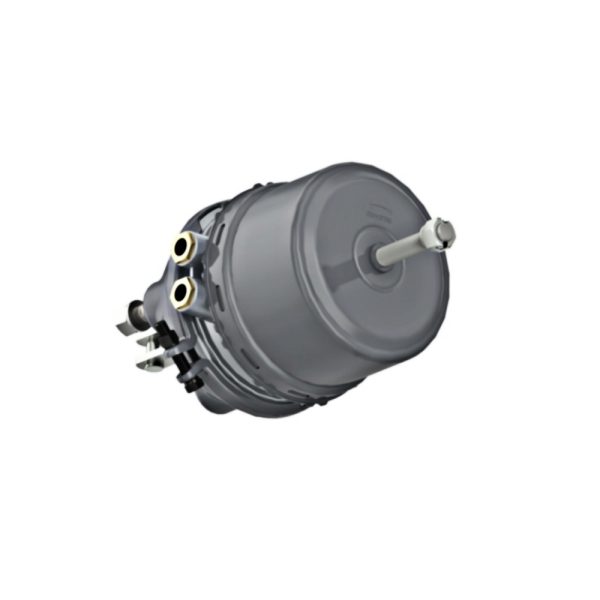

Wabco 9254900070 Spring Brake Actuator Type 20/24 (Hand Brake Assy) Tata LPT 3118
₹9,630.00 Original price was: ₹9,630.00.₹8,670.00Current price is: ₹8,670.00.
In Stock
Wabco 9254900070 Spring Brake Actuator Type 20/24 (Hand Brake Assy) Tata LPT 3118 Type – 20 / 24 Max. operating pressure – 10.0/10.0 bar Output force M – 12750 N Stroke – 57/57 mm Temperature range – -40°C to +80°C LPK 1212 CRX 497CRDI , LPT 3118 TC 6BT , LPT 3118 TC ISBE5.6 , […]
Categories:
Brake Assy (Front,Rear), Brake System (Air & Hydraulic), Brake PipelineBrake Linings,Brake Shoe Springs and Service KitsTags:
(Hand Brake Assy)20/249254900070ActuatorBrakeBS3BS4BS6LPK 1212 CRX 497CRDILPT 3118LPT 3118 TC 6BTLPT 3118 TC ISBE5.6LPT 3118 TC ISBE5.9SIGNA 4223 TCSIGNA 4223.T TC ISBE5.9 UMBSIGNA 4223.TK TC ISBE5.9SIGNA 4823.T TC ISBE 5.9SpringtataTypewabcoSKU:
9254900070Wabco 9254900070 Spring Brake Actuator Type 20/24 (Hand Brake Assy) Tata LPT 3118
- Type – 20 / 24
- Max. operating pressure – 10.0/10.0 bar
- Output force M – 12750 N
- Stroke – 57/57 mm
- Temperature range – -40°C to +80°C
- LPK 1212 CRX 497CRDI , LPT 3118 TC 6BT , LPT 3118 TC ISBE5.6 , LPT 3118 TC ISBE5.9 ,SIGNA 4223 TC , SIGNA 4223.T TC ISBE5.9 UMB , SIGNA 4223.TK TC ISBE5.9 , SIGNA 4823.T TC ISBE 5.9 , BS3 , BS4 , BS6
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 20 × 15 cm |
| Part Number | |
| Vehicle Make | Tata |
| Vehicle Model | LPK 1212 CRX 497CRDI BS3, LPK 1212 CRX 497CRDI BS4, LPT 3118 TC 6BT BS3, LPT 3118 TC 6BT BS4, LPT 3118 TC ISBE5.6 BS6, LPT 3118 TC ISBE5.9 BS4, SIGNA 4223 TC BS3, SIGNA 4223.T TC ISBE5.9 UMB BS4, SIGNA 4223.TK TC ISBE5.9 BS4, SIGNA 4823.T TC ISBE 5.9 BS4 |
| Vehicle Year | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
