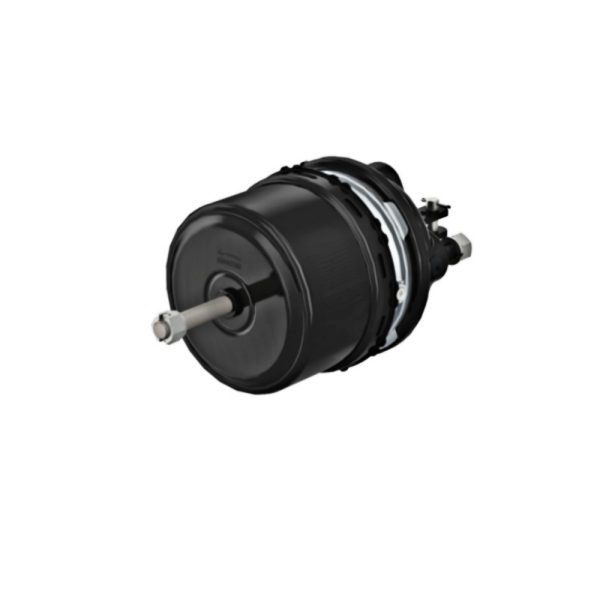

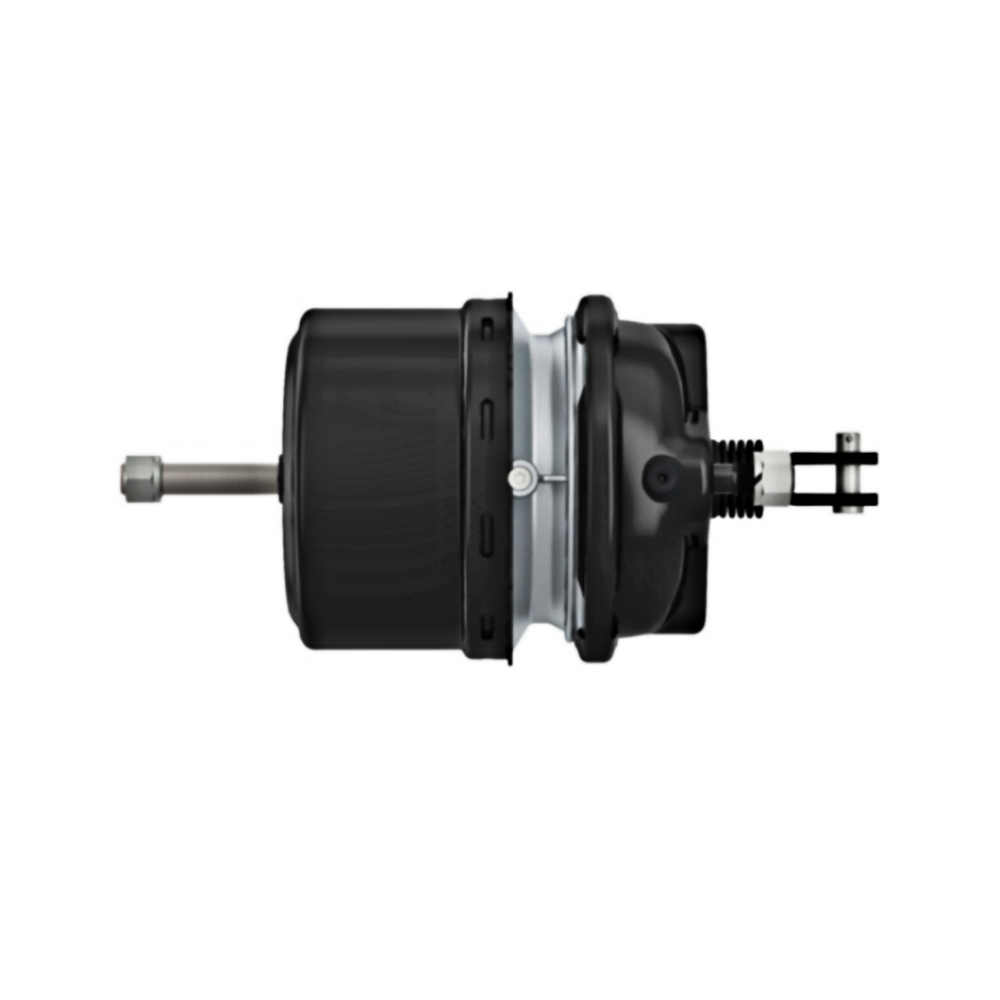

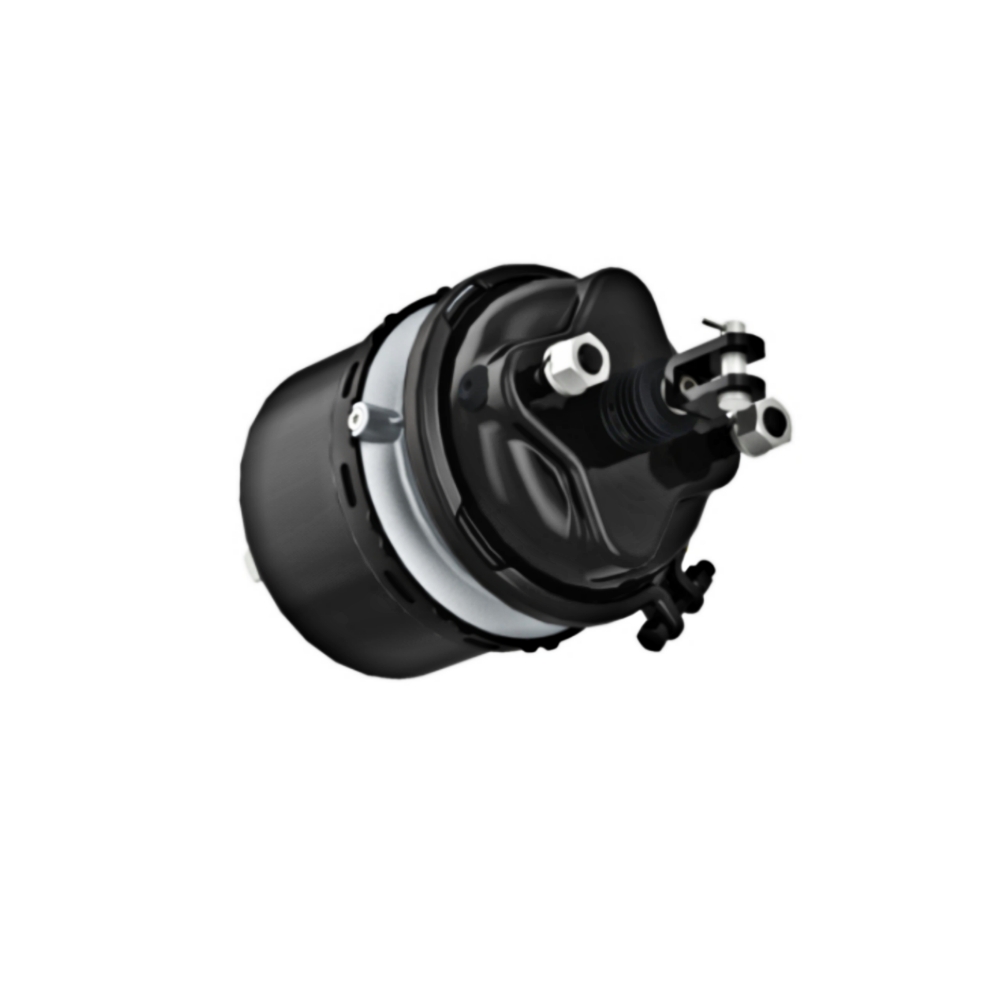

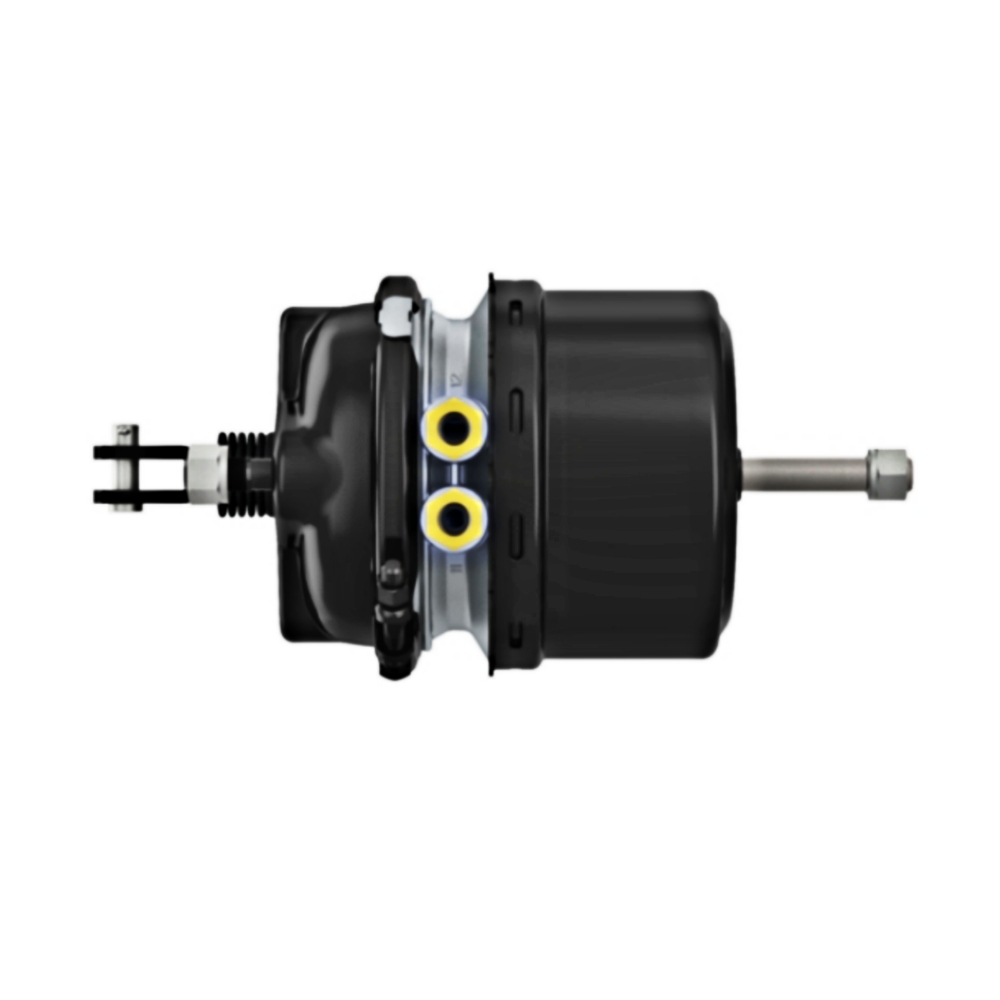

Wabco 9254910080 Spring Brake Actuator (Hand Brake Assy) Type 24/75 Tata LPT 1512 / 1613
₹10,765.00 Original price was: ₹10,765.00.₹9,690.00Current price is: ₹9,690.00.
In Stock
Wabco 9254910080 Spring Brake Actuator (Hand Brake Assy) Type 24/75 Tata LPT 1512 / 1613 Type – 24 / 75 Cooling – Air Max. operating pressure – 10.0/10.0 bar Output force M – 14230 N Release pressure – 4.7 bar Return-spring force – 140 N Temperature range – -45°C to +80°C LPT 1512 3.3L , […]
Categories:
Brake Assy (Front,Rear), Brake System (Air & Hydraulic), Brake PipelineBrake Linings,Brake Shoe Springs and Service KitsTags:
(Hand Brake Assy)24/759254910080ActuatorBrakeBS3BS4BS6LPT 1512 3.3LLPT 1512 3.8 SGI CNGLPT 1512 CRX 497CRDILPT 1613 5.7SGI CNGLPT 1613 697CRDILPT 1613 697TCICLPT 1613 TC 6BTLPT 1615 TC 6BTLPT 1615 TC ISBE5.9LPT 3118 TC 6BTLPT 3118 TC ISBE5.6LPT 3118 TC ISBE5.9SIGNA 4223 TCSIGNA 4223.T TC ISBE5.9 UMBSIGNA 4223.TK TC ISBE5.9SpringtataTata LPT 1512 / 1613TypewabcoSKU:
9254910080Wabco 9254910080 Spring Brake Actuator (Hand Brake Assy) Type 24/75 Tata LPT 1512 / 1613
-
Type – 24 / 75
- Cooling – Air
- Max. operating pressure – 10.0/10.0 bar
- Output force M – 14230 N
- Release pressure – 4.7 bar
- Return-spring force – 140 N
- Temperature range – -45°C to +80°C
- LPT 1512 3.3L , LPT 1512 3.8 SGI CNG, LPT 1512 CRX 497CRDI , LPT 1613 697TCIC, LPT 1613 5.7SGI CNG , LPT 1613 697CRDI , LPT 1613 TC 6BT , LPT 1615 TC 6BT, LPT 1615 TC ISBE5.9 , LPT 3118 TC 6BT, LPT 3118 TC 6BT , LPT 3118 TC ISBE5.6 , LPT 3118 TC ISBE5.9 , SIGNA 4223 TC , SIGNA 4223.T TC ISBE5.9 UMB, SIGNA 4223.TK TC ISBE5.9 ,BS3 , BS4 , BS6
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 30 × 50 cm |
| Part Number | |
| Vehicle Make | Tata |
| Vehicle Model | LPT 1512 3.3L BS6, LPT 1512 3.8 SGI CNG BS6, LPT 1512 CRX 497CRDI BS4, LPT 1613 5.7SGI CNG BS4, LPT 1613 697CRDI BS3, LPT 1613 697CRDI BS4, LPT 1613 697TCIC BS3, LPT 1613 TC 6BT BS3, LPT 1613 TC 6BT BS4, LPT 1615 TC 6BT BS3, LPT 1615 TC 6BT BS4, LPT 1615 TC ISBE5.9 BS4, LPT 3118 TC 6BT BS3, LPT 3118 TC 6BT BS4, LPT 3118 TC ISBE5.9 BS4, SIGNA 4223 TC BS3, SIGNA 4223.T TC ISBE5.9 UMB BS4, SIGNA 4223.TK TC ISBE5.9 BS4 |
| Vehicle Year | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
