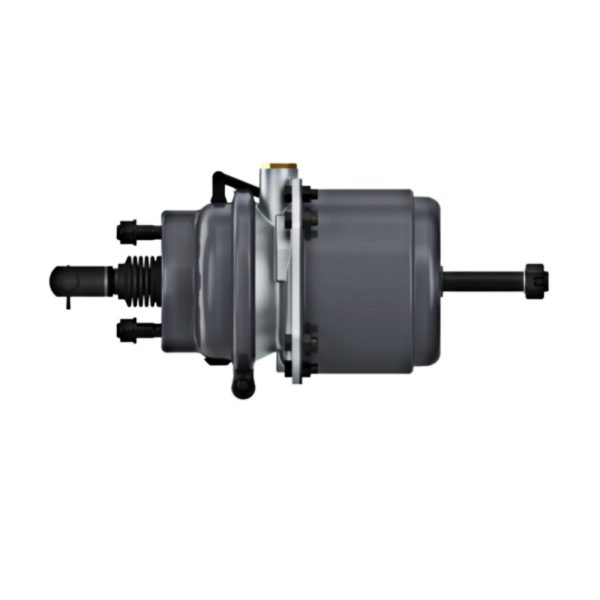

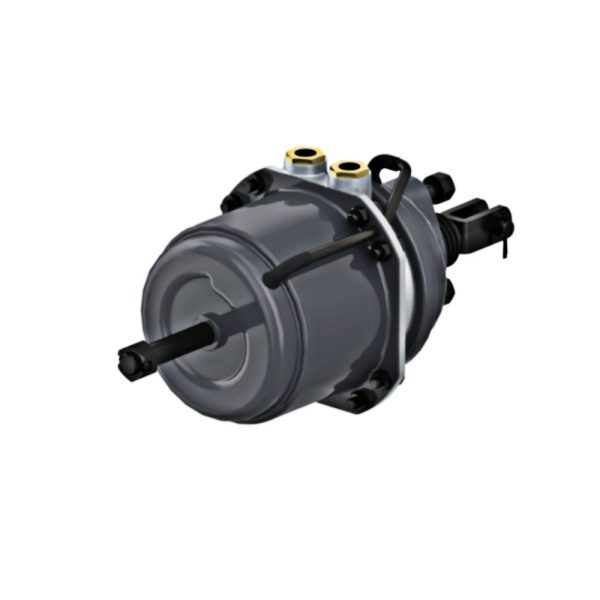

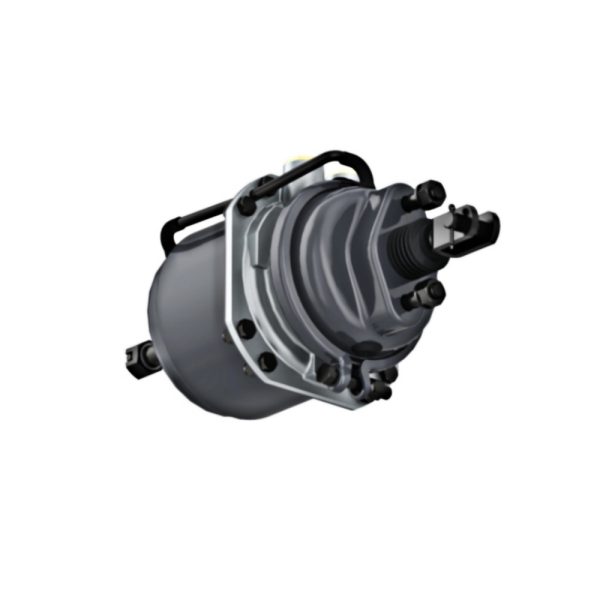

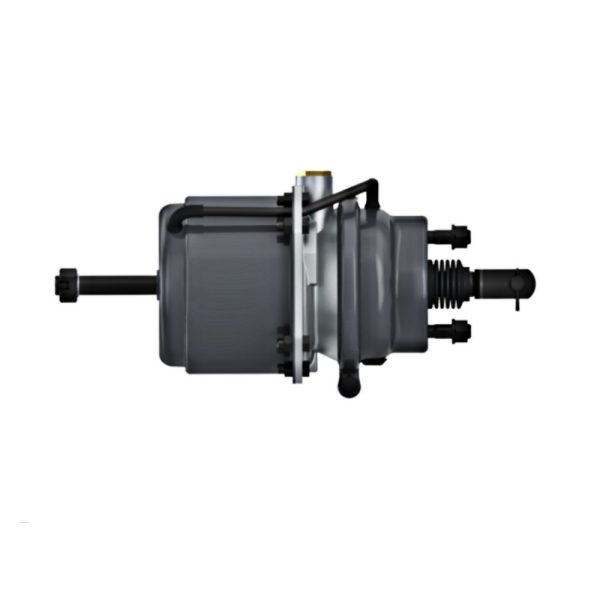

Wabco 100251600 Spring Brake Actuator (Hand Brake Booster Assy) Type 12/12 Voss Tata LPT 909/810

Description

Wabco 100251600 Spring Brake Actuator (Hand Brake Booster Assy) Type 12/12 Voss Tata LPT 909/810

• Type – 12 / 12
• Clevis pins – 12.5 mm
• Max. operating pressure – 10.0 bar
• Output force M – 6000 N
• Return-spring force – 145 N
• Temperature range – -40°C to +80°C
• SFC 1210 , SFC 1612 , SFC 1613 , SFC 1616 , SFC 407 4SPCR , LPT 810 497TCIC , LPT 909 , LPT 912 497TCIC , LPT 1010 497CRDI , LPT 1010 CRX 497CRDI , 10.75 C , 10.75 E F/L , 10.75 H , 10.75 H F/L, 10.75C F/L , 10.75H , 10.90 L , 10.90 L CWC, 10.90 L F/L , 10.90 L F/L CWC AB PS NG , 10.90L F/L , PRO 3009 BUS H, PRO 3009 BUS L , PRO 1095 , PRO 1095 E , PRO 1095 E HSD , PRO 1095 F , PRO 1095 F HSD, PRO 1095 H , PRO 1095 H HSD , PRO 1095 H HSD RHD , PRO 1095 K , PRO 1095 K HSD , PRO 1095XP E , PRO 1095XP E DSD , PRO 1095XP E HSD , PRO 1095XP F , PRO 1095XP F CBC, PRO 1095XP H , PRO 1095XP H CBC , PRO 1095XP K , PRO 1095XP K CBC , PRO 1095XP K CBC RHD , BS3 , BS4 , BS6
