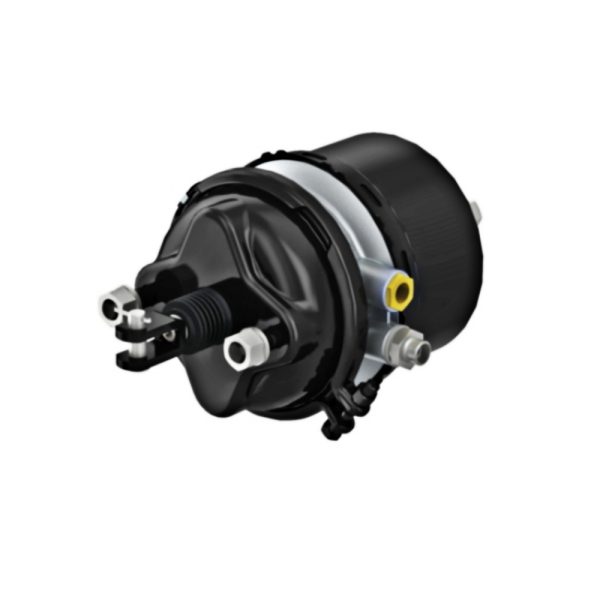

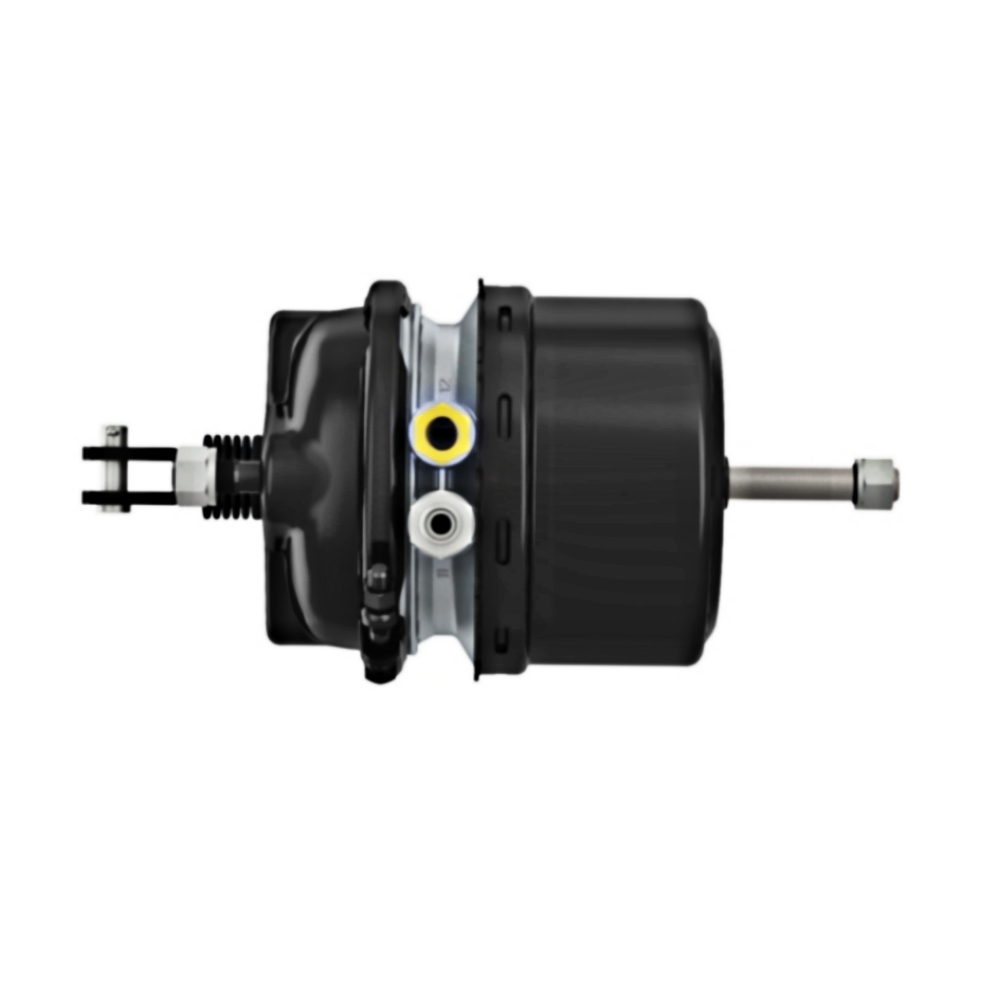

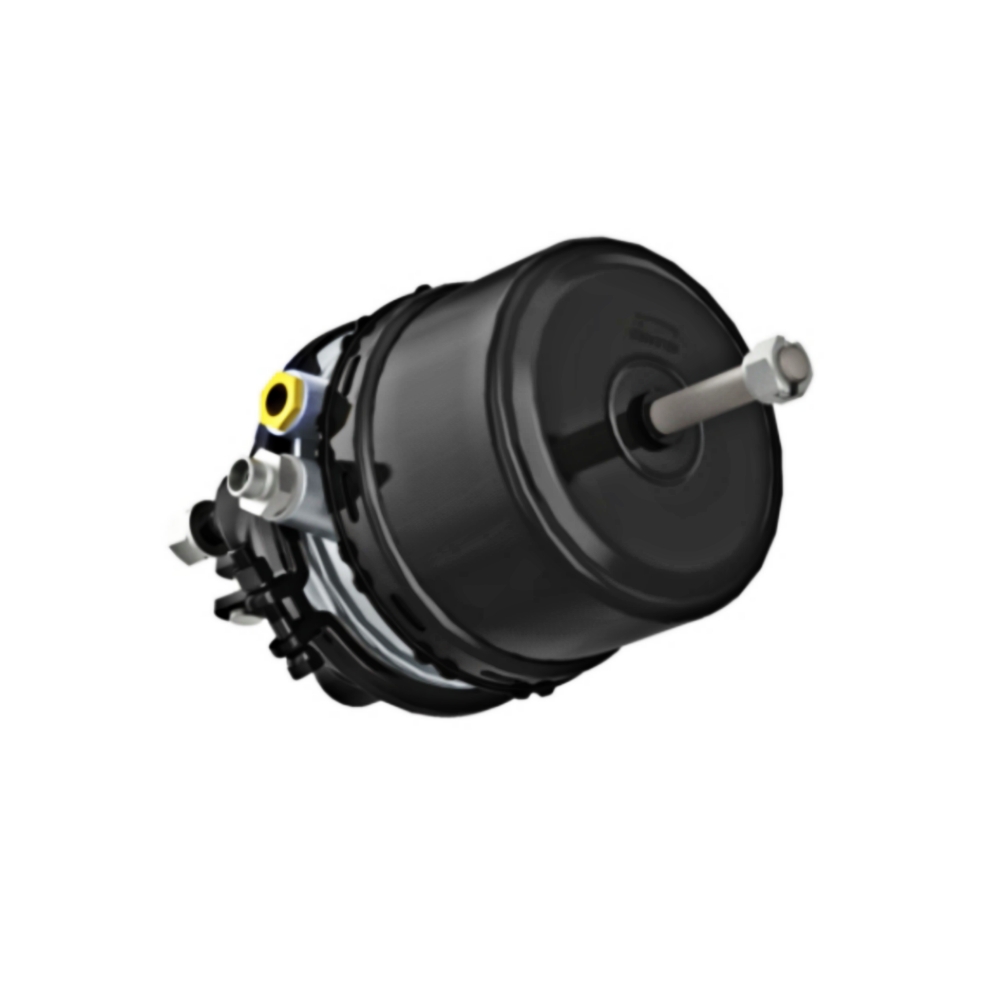

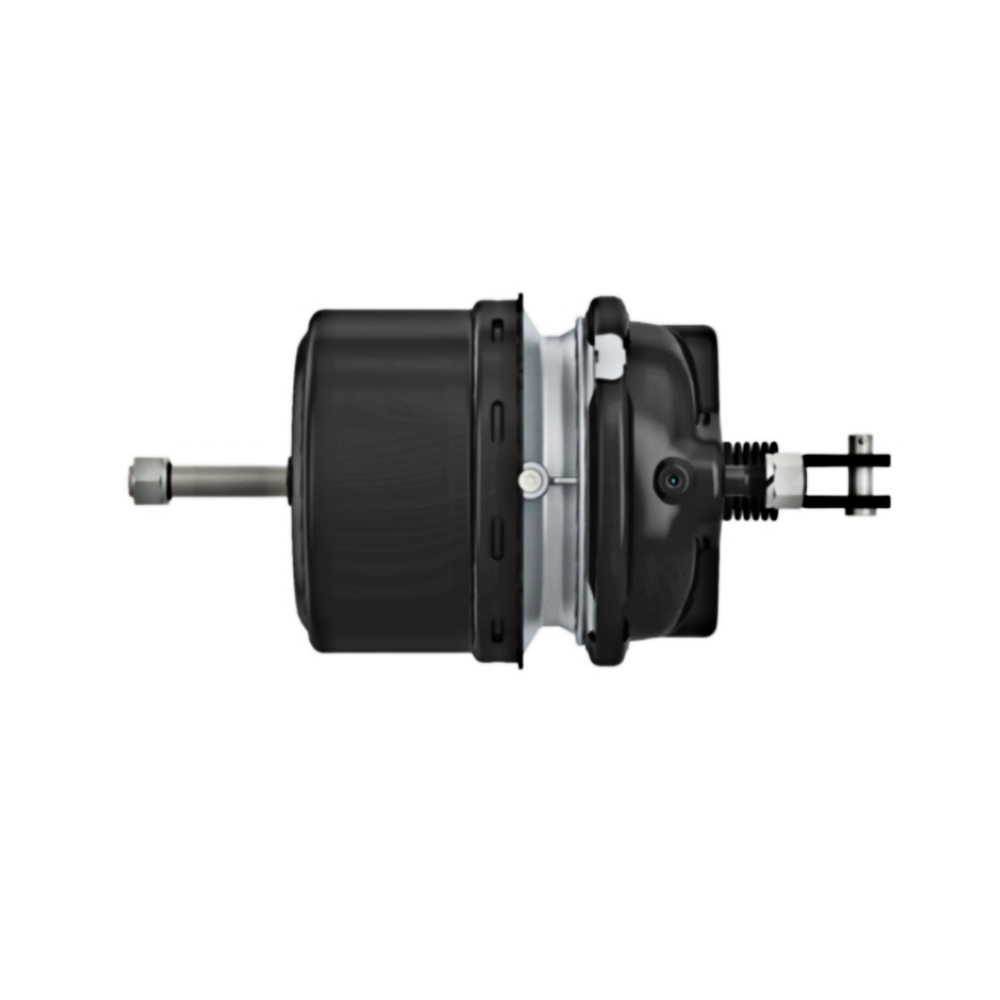

Wabco 9254910470 Spring Brake Actuator Type 24/24 (Hand Brake Booster Assy) Tata LP1112
₹9,475.00 ₹8,530.00
In Stock
Wabco 9254910470 Spring Brake Actuator Type 24/24 (Hand Brake Booster Assy) Tata LP1112 Type – 24 / 24 Cooling – Air Max. operating pressure – 10.0/10.0 bar Output force M – 14230 N Release pressure – 4.7 bar Return-spring force – 140 N Temperature range – -40°C to +80°C LP 1112 497TCIC , LP 1112 […]
Categories:
Brake Assy (Front,Rear), Brake System (Air & Hydraulic), Brake PipelineBrake Linings,Brake Shoe Springs and Service KitsTags:
(Hand Brake Booster Assy)24/249254910470ActuatorBrakeBS3BS4LP 1112 497TCICLP 1112 EX 497TCICLP 1112 W 497CRDILP1112LPK 1618 697CRDILPK 1618 TC 6BTLPK 1618 TC ISBE5.9LPK 1618 TC ISBE5.9 UMBLPO 1510 697TCIC BUSLPS 4018LPS 4018 TC 6BTLPS 4018 TC ISBE5.9LPT 1918 5LLPT 1918 TC ISBE5.6LPT 1918 TC ISBE5.9 UMBSIGNA 3518.S TC ISBE5.9SIGNA 3518.T TC ISBE5.6SIGNA 3518.TK TC ISBE5.9SIGNA 3518SSIGNA 3518TSpringtataTypewabcoSKU:
9254910470Wabco 9254910470 Spring Brake Actuator Type 24/24 (Hand Brake Booster Assy) Tata LP1112
- Type – 24 / 24
- Cooling – Air
- Max. operating pressure – 10.0/10.0 bar
- Output force M – 14230 N
- Release pressure – 4.7 bar
- Return-spring force – 140 N
- Temperature range – -40°C to +80°C
- LP 1112 497TCIC , LP 1112 EX 497TCIC , LP 1112 W 497CRDI , LPK 1618 697CRDI , LPK 1618 TC 6BT , LPK 1618 TC ISBE5.9, LPK 1618 TC ISBE5.9 UMB , LPT 1918 5L, LPT 1918 5L , LPT 1918 TC ISBE5.6 , LPT 1918 TC ISBE5.9 UMB , SIGNA 3518.S TC ISBE5.9, SIGNA 3518.T TC ISBE5.6 , SIGNA 3518.TK TC ISBE5.9 , SIGNA 3518S , SIGNA 3518T, LPS 4018 , LPS 4018 TC 6BT , LPS 4018 TC ISBE5.9 , LPO 1510 697TCIC BUS , BS3 , BS4 , BS6
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 30 × 50 cm |
| Part Number | |
| Vehicle Make | Tata |
| Vehicle Model | LP 1112 497TCIC BS3, LP 1112 EX 497TCIC BS3, LP 1112 W 497CRDI BS4, LPK 1618 697CRDI BS4, LPK 1618 TC 6BT BS3, LPK 1618 TC ISBE5.9 BS4, LPK 1618 TC ISBE5.9 UMB BS4, LPO 1510 697TCIC BUS BS3, LPS 4018 BS3, LPS 4018 BS4, LPS 4018 TC 6BT BS3, LPS 4018 TC ISBE5.9 BS4, LPT 1918 5L BS4, LPT 1918 TC ISBE5.6 BS6, LPT 1918 TC ISBE5.9 UMB BS4, SIGNA 3518.S TC ISBE5.9 BS4, SIGNA 3518.T TC ISBE5.6 BS6, SIGNA 3518.TK TC ISBE5.9 BS4, SIGNA 3518S BS4, SIGNA 3518T BS4 |
| Vehicle Year | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
Be the first to review “Wabco 9254910470 Spring Brake Actuator Type 24/24 (Hand Brake Booster Assy) Tata LP1112”
| Make | Model | Year |
|---|---|---|
| TATA | LP 1112 497TCIC BS3 | 2012 - 2017 |
| TATA | LP 1112 EX 497TCIC BS3 | 2012 - 2017 |
| TATA | LP 1112 W 497CRDI BS4 | 2012 - 2020 |
| TATA | LPK 1618 697CRDI BS4 | 2012 - 2021 |
| TATA | LPK 1618 TC 6BT BS3 | 2008 - 2017 |
| TATA | LPK 1618 TC ISBE5.9 BS4 | 2012 - 2020 |
| TATA | LPK 1618 TC ISBE5.9 UMB BS4 | 2012 - 2021 |
| TATA | LPO 1510 697TCIC BUS BS3 | 2008 - 2017 |
| TATA | LPS 4018 BS3 | 2008 - 2017 |
| TATA | LPS 4018 BS4 | 2017 - 2020 |
| TATA | LPS 4018 TC 6BT BS3 | 2008 - 2017 |
| TATA | LPS 4018 TC ISBE5.9 BS4 | 2012 - 2020 |
| TATA | LPT 1918 5L BS4 | 2012 - 2020 |
| TATA | LPT 1918 5L BS6 | 2020 - 2022 |
| TATA | LPT 1918 TC ISBE5.6 BS6 | 2020 - 2022 |
| TATA | LPT 1918 TC ISBE5.9 UMB BS4 | 2012 - 2020 |
| TATA | SIGNA 3518.S TC ISBE5.9 BS4 | 2012 - 2030 |
| TATA | SIGNA 3518.T TC ISBE5.6 BS6 | 2020 - 2022 |
| TATA | SIGNA 3518.TK TC ISBE5.9 BS4 | 2012 - 2020 |
| TATA | SIGNA 3518S BS4 | 2012 - 2020 |
| TATA | SIGNA 3518T BS4 | 2012 - 2020 |
